The Waveshare ESP32-S3-Zero is a compact, high-performance microcontroller development board built around the ESP32-S3 series chip. It is designed for embedded systems, Internet of Things (IoT) projects, smart devices, automation, and portable electronics where small size and wireless connectivity are important.

The board integrates 2.4 GHz Wi-Fi and Bluetooth Low Energy (BLE) capabilities, allowing it to communicate with smartphones, wireless sensors, cloud platforms, and other connected devices. Its ESP32-S3 processor supports advanced embedded applications, including sensor monitoring, control systems, data processing, and selected AI or machine-learning tasks.

With its miniature design, USB programming interface, and GPIO pins, the ESP32-S3-Zero is suitable for projects that require a small controller without sacrificing processing capability. It can be programmed using the Arduino IDE, ESP-IDF, and compatible MicroPython workflows, depending on the software and board support available.

Features

ESP32-S3 microcontroller: Powerful 32-bit processor for embedded applications.
2.4 GHz Wi-Fi: Enables wireless networking, internet access, and IoT communication.
Bluetooth Low Energy: Supports communication with compatible BLE devices.
Ultra-compact design: Ideal for space-constrained electronic projects.
USB programming: Supports firmware development and serial communication through its USB interface.
GPIO connectivity: Interfaces with compatible sensors, switches, LEDs, displays, and control circuits.
PWM support: Useful for LED dimming and compatible motor-control applications.
Analog input support: Allows measurement of analog sensor signals on suitable pins.
Arduino IDE compatibility: Suitable for beginners and experienced embedded developers.
AI and signal-processing capability: The ESP32-S3 architecture includes vector instructions that can accelerate certain signal-processing and machine-learning workloads.

Technical Specifications

Specification	Details
Brand	Waveshare
Model	ESP32-S3-Zero
Main controller	ESP32-S3 series
Processor architecture	32-bit Xtensa LX7 dual-core
Maximum CPU frequency	Up to 240 MHz
Wireless connectivity	2.4 GHz Wi-Fi and Bluetooth LE
Wi-Fi standard	IEEE 802.11 b/g/n
Bluetooth	Bluetooth 5 LE support
Programming interfaces	USB and serial-based development workflows, depending on configuration
Digital I/O	GPIO pins; usable count depends on board pinout
Analog input	Available through supported ADC-capable GPIO pins
PWM	Supported
Development environments	Arduino IDE, ESP-IDF; compatible MicroPython builds where available
Operating voltage	3.3V logic
Board power input	Depends on the board's USB and power-pin design
Form factor	Miniature development board
Typical applications	IoT, sensors, automation, wearables, compact controllers

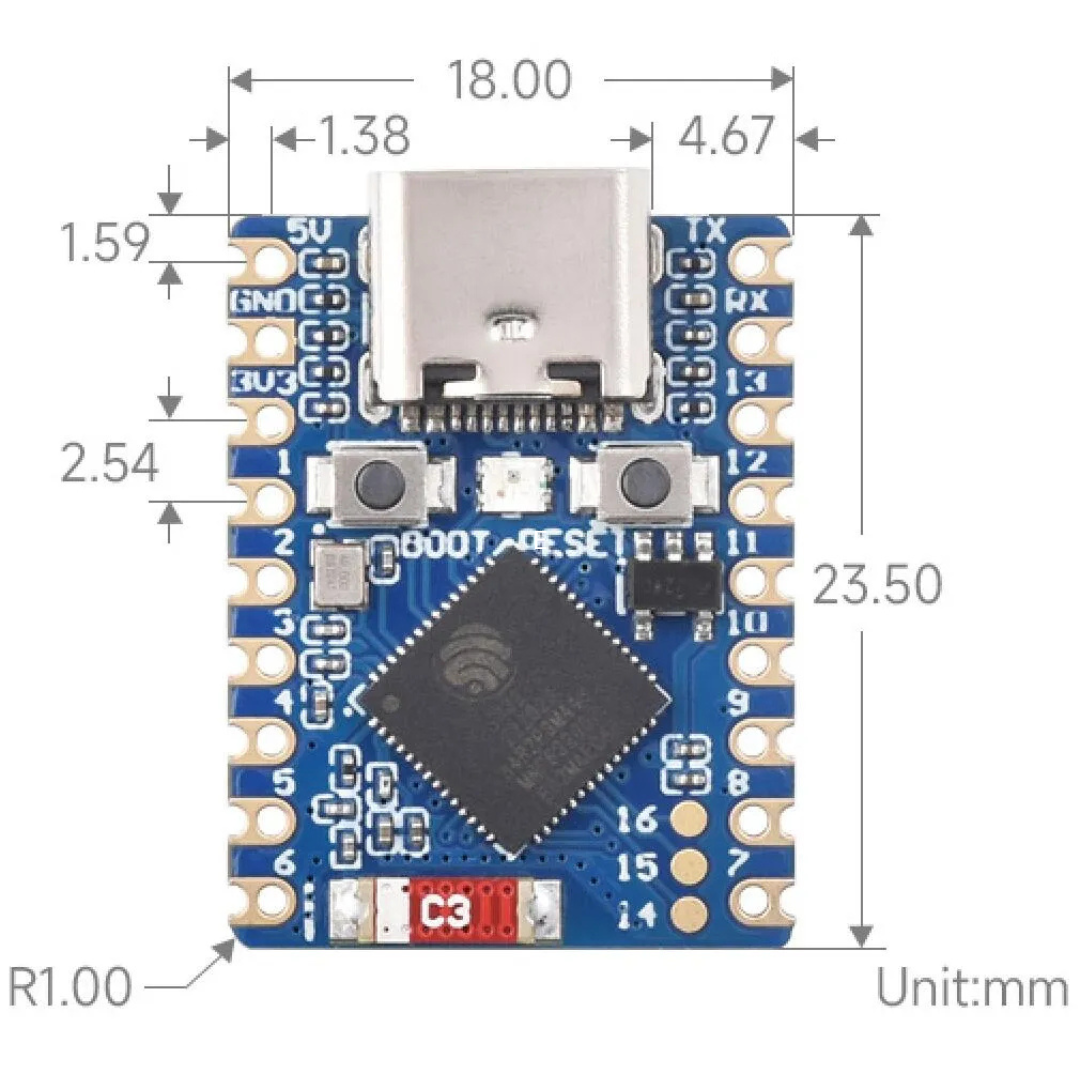

Waveshare ESP32-S3-Zero Mini Development Board
