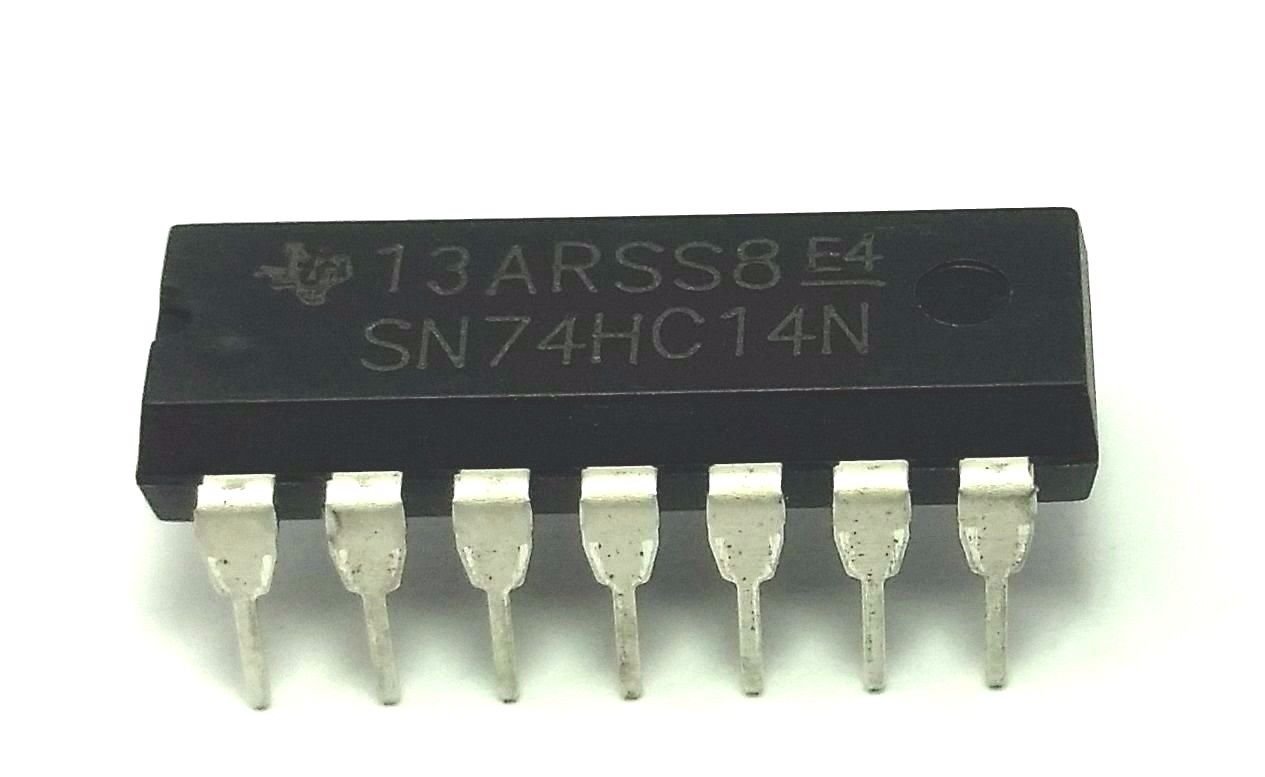

SN74HC14 Schmitt-Trigger Inverter DIP14

SNx4HC14 are Schmitt-trigger devices that contain six independent inverters. They perform the Boolean function Y = A in positive logic Specifications. Wide Operating Voltage Range of 2 V to 6 V Outputs Can Drive Up to 10 LSTTL Loads Low Power Consumption, 20-μA Max ICC Typical tpd = 11 ns ±4-mA Output Drive at 5 V Low Input Current of 1 μA Max On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessaril...

1,000 RWF
