The JF-0826B DC 12V Push-Pull Solenoid is a compact electromagnetic linear actuator designed to convert electrical energy into mechanical movement. When a 12V DC supply energizes its coil, the resulting magnetic field moves the internal iron plunger, producing a linear pulling or pushing action depending on the mechanical arrangement.

With a stated force of approximately 20 N, this solenoid is suitable for small automation systems, electronic locks, mechanical switches, dispensing mechanisms, and DIY robotics projects. Its compact construction makes it convenient for integration into custom equipment requiring electrically controlled movement.

Key Features

Model: JF-0826B.
Rated voltage: 12V DC.
Operating principle: Electromagnetic linear actuation.
Force rating: 20 N, subject to the specified stroke and operating conditions.
Push-pull operation: Suitable for linear movement depending on mounting and return mechanism.
Compact construction: Designed for integration into small mechanical assemblies.
Fast electromagnetic response: Provides rapid actuation when power is applied.
Simple electrical control: Can be operated using a suitable transistor, MOSFET, or relay driver.
Wide application range: Suitable for automation, locking mechanisms, and electromechanical prototypes.

Technical Specifications

Specification	Details
Product name	Push-Pull Solenoid
Model	JF-0826B
Rated voltage	12V DC
Stated force	20 N
Actuation type	Electromagnetic linear movement
Main component	Coil, movable plunger, metal housing
Control method	Electrical energization
Mounting	Mechanical mounting, depending on design
Return mechanism	Depends on the model configuration
Applications	Locks, actuators, automation, robotics

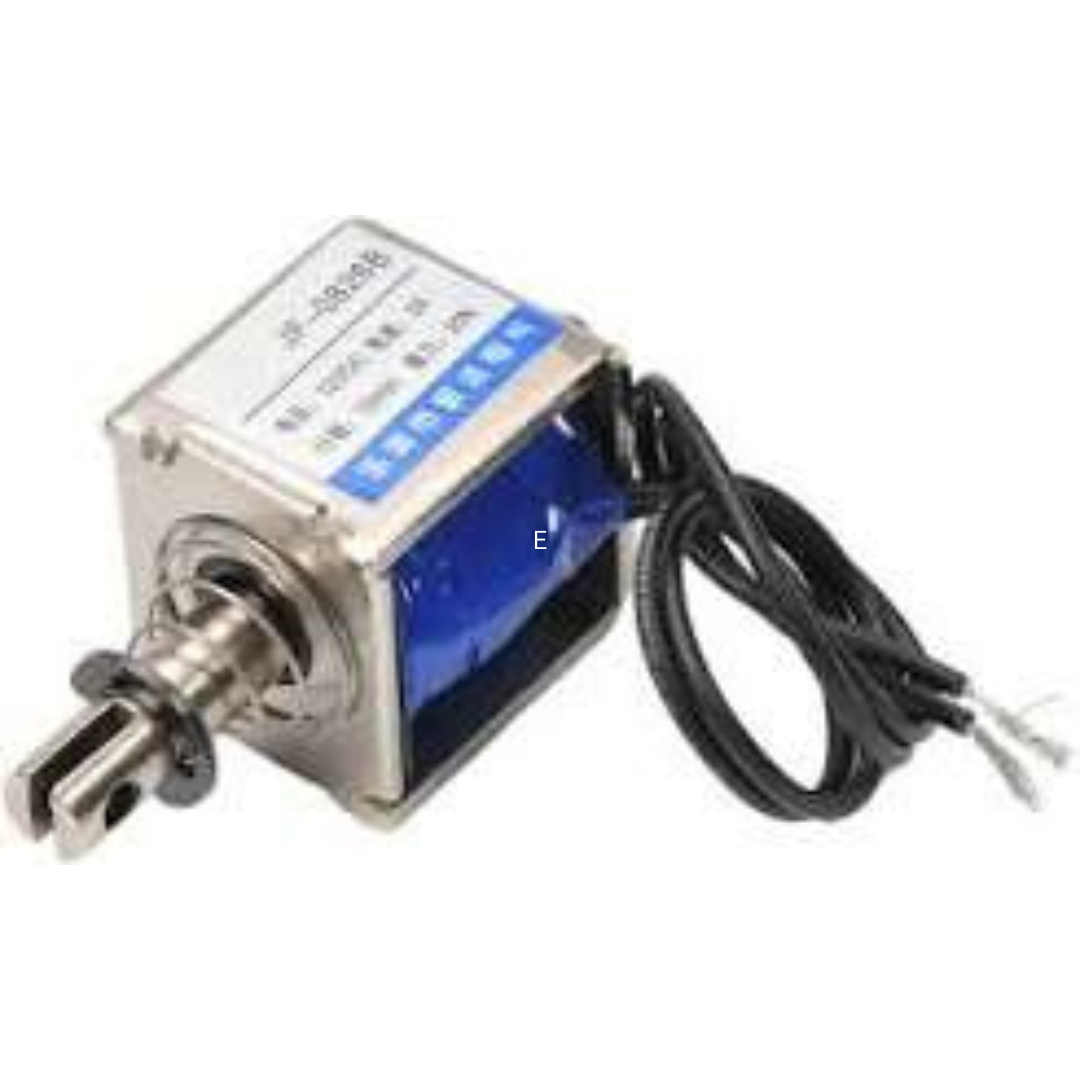

Push Pull Solenoid JF-0826B DC 12V, 20N
