An IGBT combines characteristics of a MOSFET and a bipolar transistor. Its insulated gate requires very little steady-state gate current, while its power semiconductor structure allows it to handle relatively high voltage and current.

When a suitable voltage is applied between Gate and Emitter, the device turns ON and allows current to flow between Collector and Emitter. Removing the gate drive turns it OFF.

K15T60, IKP15N60T, 15A 600V IGBT, IGBT transistor, power IGBT, TO-220 IGBT, 600V transistor, 15A transistor, N-channel IGBT, power switching transistor, high voltage IGBT, high current transistor, inverter transistor, MOSFET alternative, solar inverter component, UPS transistor, motor controller transistor, switching power supply, DC-AC inverter, DC-DC converter, motor drive, welding machine component, induction heating, power electronics, electronic components, PCB component, high-power transistor, semiconductor, IGBT module, electronic repair.

Common Applications

The K15T60/IKP15N60T can be used in:

Inverters
Solar power inverters
UPS systems
Battery chargers
Switching power supplies
Motor controllers
Induction-heating circuits
Motor drives
DC-to-AC converters
Industrial power-control equipment

TO-220 Package

The TO-220 package makes the component relatively easy to mount on a PCB or heatsink. Because the device can dissipate significant power during operation, a heatsink may be required depending on the switching frequency, current, voltage, and circuit design.

Pin Configuration

For many TO-220 IGBT versions, the front-facing leads are commonly arranged:

1 — Gate (G)
2 — Collector (C)
3 — Emitter (E)

However, pinout must be verified from the exact manufacturer's datasheet, because similarly marked components can have different configurations.

Advantages

High 600 V voltage rating
High-current switching capability
Insulated gate requires very little steady-state gate current
Compact TO-220 package
Easy PCB mounting
Can handle substantial power when properly cooled
Useful for inverter and motor-control applications

Specifications

Parameter	Typical value
Part number	IKP15N60T / K15T60
Device type	IGBT
Maximum collector-emitter voltage (VCE)	600 V
Collector current (IC)	15 A
Package	TO-220
Gate control	Voltage controlled
Typical gate voltage	±20 V maximum range*
Application frequency	High-speed switching
Mounting	Through-hole
Terminals	Gate, Collector, Emitter

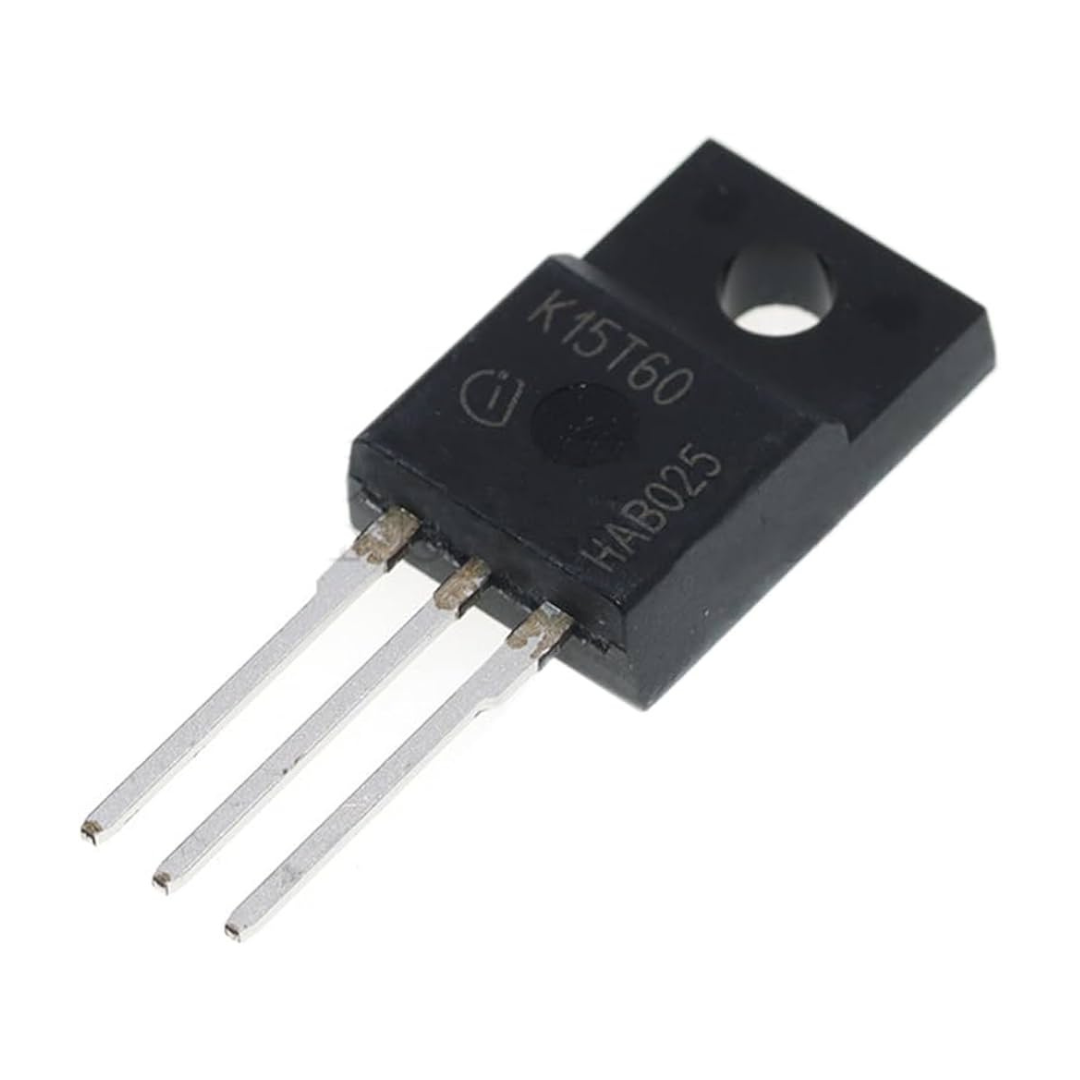

K15T60 IKP15N60T TO-220 15A 600V high-voltage power IGBT MOSFET
