How It Works

The AS5600 detects the magnetic field produced by a magnet positioned above the sensor. As the magnet rotates, the magnetic field direction changes. The sensor converts this change into a digital angle value.

Because there is no physical contact between the sensor and rotating magnet, there is very little mechanical wear, making it suitable for applications requiring repeated or continuous rotation.

12-Bit High Resolution

The 12-bit resolution provides:

2¹² = 4096 positions per revolution

This corresponds to approximately:

360° ÷ 4096 ≈ 0.088° per digital step

This makes the module useful for precise rotary-position measurements.

I²C Interface

The module can communicate with microcontrollers and development boards through I²C, making it easy to integrate with:

Arduino
ESP32
Raspberry Pi
STM32
Other I²C-compatible controllers

The digital output eliminates the need for an external ADC when reading the sensor's angular position.

Applications

The AS5600 is useful for:

Rotary knobs and control panels
Robotic joints
Servo and motor position feedback
Gimbal systems
Robotics projects
3D printers
CNC equipment
Electronic throttle controls
Volume/control knobs
Steering-position measurement
DIY absolute encoders
Industrial automation
IoT and embedded systems

Advantages

Contactless operation reduces mechanical wear
12-bit resolution for fine angular measurement
360° absolute position sensing
Simple I²C digital communication
Small and easy to integrate
Suitable for Arduino, ESP32 and Raspberry Pi projects
Magnet included with many breakout modules
Useful for both hobby and professional embedded applications

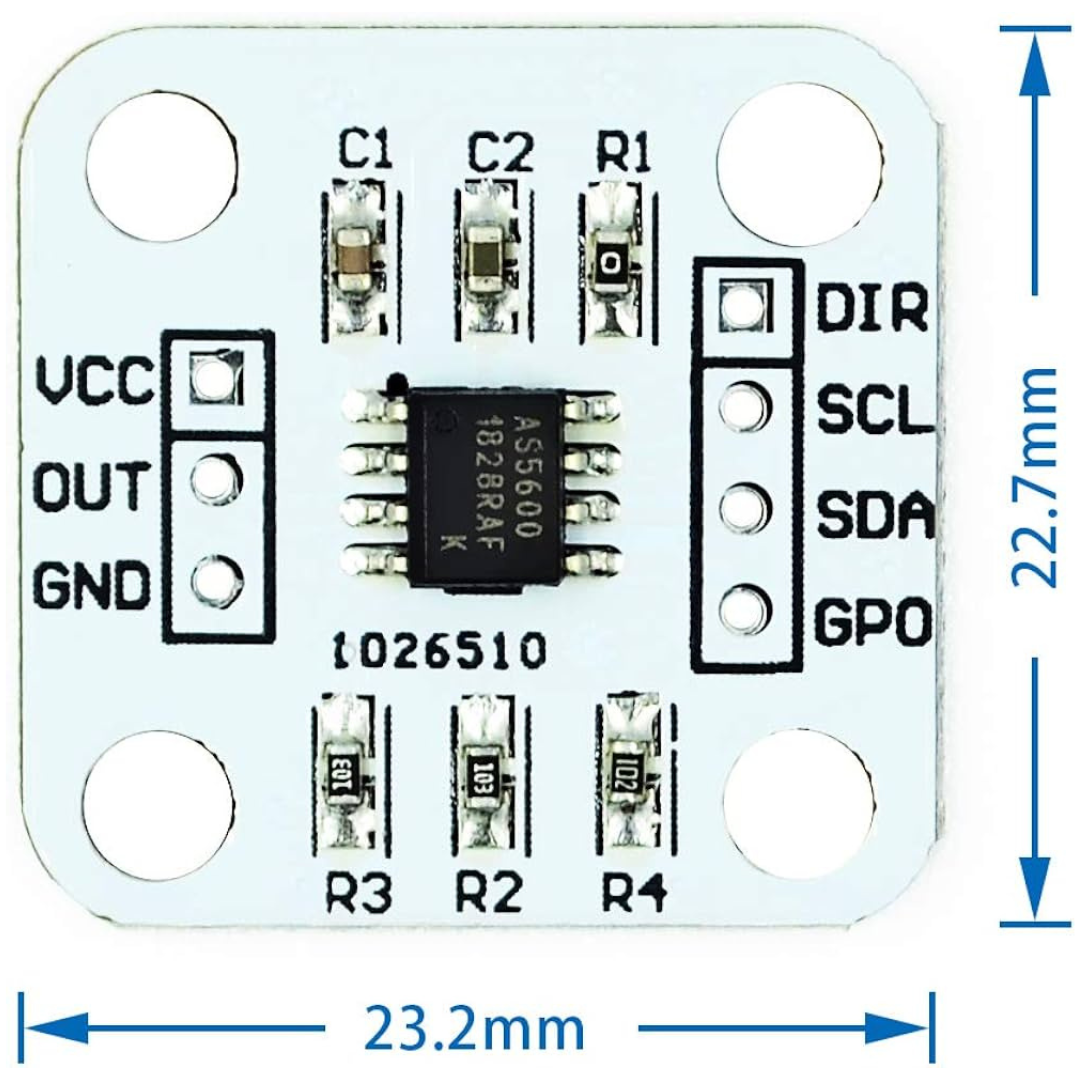

AS5600 Magnetic Encoder Module
