Key Specifications

Parameter	Specification
Capacitance	3300µF
Rated Voltage	35V DC
Type	Aluminum electrolytic
Polarity	Polarized
Main Function	Filtering & energy storage
Typical Application	Power supplies and electronic circuits

Main Features

High 3300µF capacitance for effective DC voltage smoothing.
35V voltage rating suitable for circuits operating below the rated voltage.
Helps reduce AC ripple and voltage fluctuations after rectification.
Stores and releases electrical energy when required.
Polarized design for use in DC circuits.
Suitable for power supply filtering and bulk energy storage.
Available in compact radial-lead configurations depending on the manufacturer.

Common Applications

AC-to-DC power supplies
Linear regulated power supplies
Switching power supplies
Audio amplifier power sections
DC motor controllers
LED driver circuits
Inverter and converter circuits
Battery-powered equipment
Automotive electronics
Industrial control equipment
DIY electronics and repair projects

How It Works

When connected to a DC power supply, the capacitor charges and stores electrical energy. When the supply voltage drops or the circuit demands additional current, the capacitor can discharge some of its stored energy. In a rectifier power supply, this action helps convert pulsating DC into a smoother DC voltage.

The 3300µF value provides significantly more filtering capacity than smaller capacitors such as 100µF or 470µF, making it useful where larger current fluctuations or ripple need to be controlled. Specifications & Features

Capacitance (3300µF): Provides a large storage capacity to smooth out voltage ripples in DC power lines.
Voltage Rating (35V): The maximum safe DC voltage the capacitor can withstand. In practice, your circuit operating voltage should ideally be 24V or lower to maintain a safe 30%+ buffer.
Common Dimensions:
- Radial Through-Hole (Standard): Usually measures 16x25mm or 18x35mm with standard lead spacing.
- Snap-In (Heavy Duty): Usually measures around 22x25mm or 20x30mm for larger power supply units.
Temperature Rating: Typically rated up to 105°C for long-term thermal stability.
Polarity: This is a polarized component. The negative terminal is strictly marked with a stripe/minus sign on the casing and has a shorter lead. Backward installation can cause it to burst.

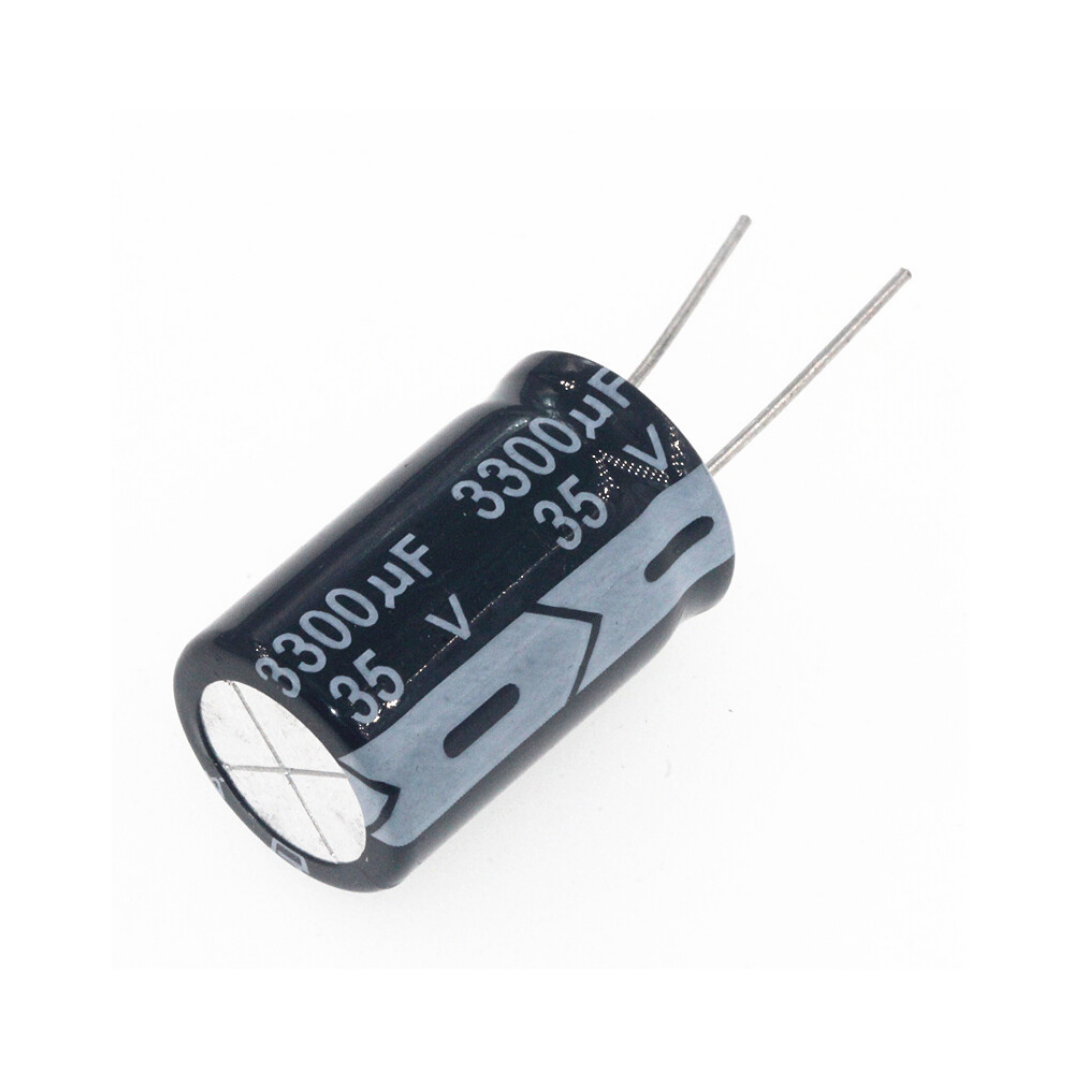

35V/3300µF Electrolytic capacitor
