The 35V 470µF electrolytic capacitor is a polarized aluminum electrolytic capacitor designed for power-supply filtering, voltage smoothing, ripple reduction, energy storage, decoupling, and circuit stabilization. Its relatively high 470µF capacitance makes it suitable for power circuits where greater filtering and energy storage are required.

Main Specifications

Parameter	Specification
Capacitance	470µF
Rated Voltage	35V DC
Type	Aluminum Electrolytic
Polarity	Polarized
Typical Tolerance	±20%
Temperature Rating	85°C or 105°C, depending on series
Mounting	Radial through-hole
Construction	Aluminum electrolytic

Key Features

470µF high capacitance for effective filtering and energy storage.
35V voltage rating suitable for many low- and medium-voltage DC circuits.
Helps reduce voltage ripple in rectified power supplies.
Helps maintain a more stable DC voltage during load changes.
Suitable for power-supply smoothing and decoupling.
Commonly used in audio amplifiers and electronic equipment.
Useful for PCB repair and component replacement.

Common Applications

DC power supplies
Bridge-rectifier smoothing
Voltage regulators
Audio amplifiers
LED power supplies
Battery charging circuits
DC-DC converters
Inverters
Motor-control circuits
Arduino and ESP32 projects
Industrial control equipment
Electronic repair

Polarity

This capacitor is polarized:

Positive (+) → positive circuit terminal
Negative (−) → negative/ground

The negative side is normally marked with a stripe on the capacitor body.

Voltage Rating

The 35V rating is the maximum specified working voltage. The operating voltage should remain below 35V, including consideration of transient voltage spikes. For reliability, a suitable voltage margin is recommended.

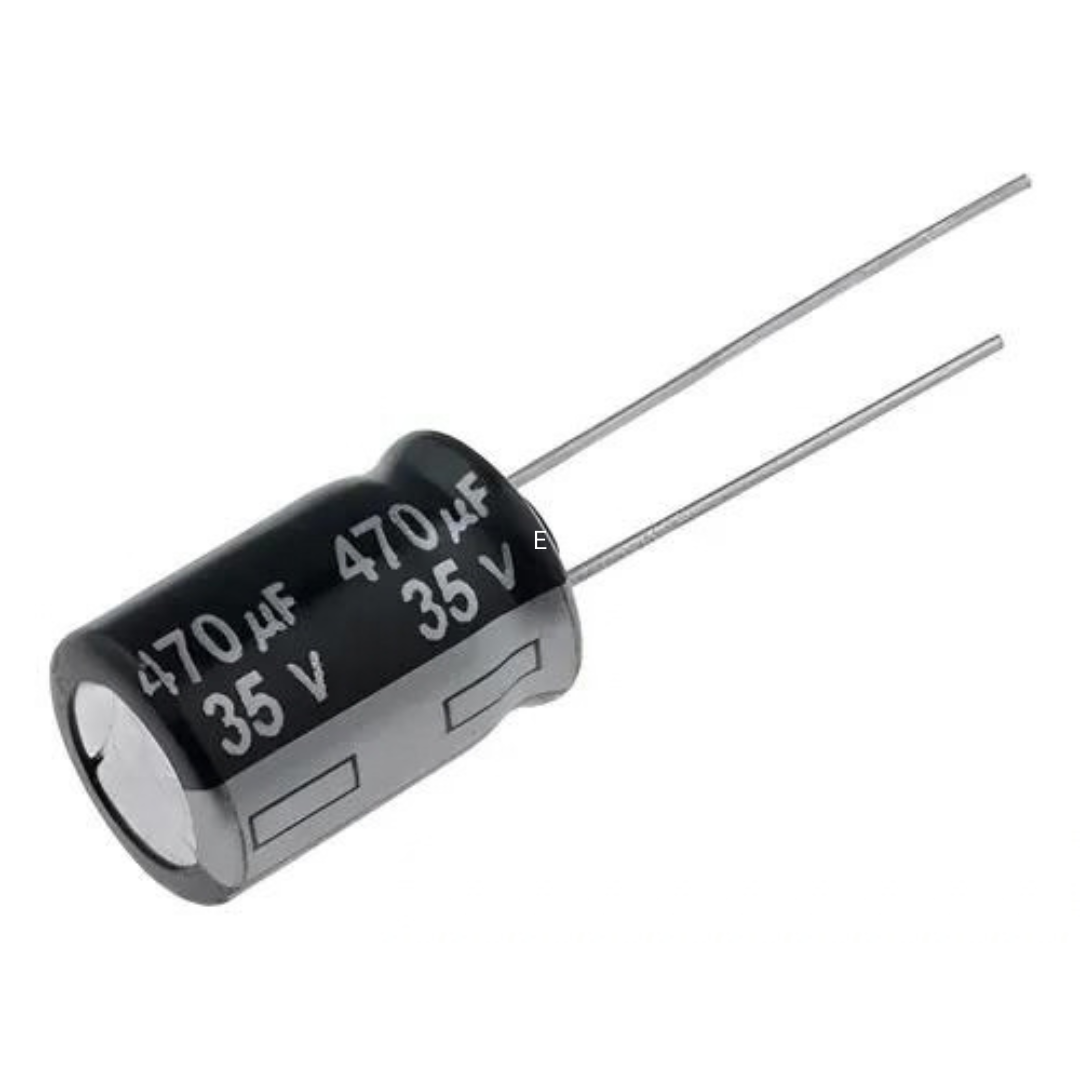

35V 470µF Electrolytic Capacitor
