The 35V 1000µF electrolytic capacitor is a polarized aluminum electrolytic capacitor designed for power-supply filtering, voltage smoothing, ripple reduction, energy storage, and DC voltage stabilization. Its relatively high 1000µF capacitance makes it particularly useful in power supplies and circuits with changing current demands.

Main Specifications

Parameter	Specification
Capacitance	1000µF
Rated Voltage	35V DC
Type	Aluminum Electrolytic
Polarity	Polarized
Typical Tolerance	±20%
Temperature Rating	Commonly 85°C or 105°C
Mounting Type	Radial / Through-Hole
Application	Filtering, smoothing & energy storage

Key Features

1000µF high capacitance for substantial filtering and energy storage.
35V voltage rating suitable for many low- and medium-voltage DC systems.
Helps reduce AC ripple after AC-to-DC rectification.
Provides additional current during short-duration load changes.
Helps stabilize DC power rails.
Suitable for power supplies, amplifiers, converters, and control boards.
Widely used for electronic equipment repair and PCB replacement.

Common Applications

DC power supplies
Bridge-rectifier smoothing
Battery and charging circuits
Audio amplifiers
LED power supplies
DC-DC converters
Inverter circuits
Motor-control systems
Arduino and ESP32 projects
Industrial control electronics
PCB repair and maintenance

Polarity

This capacitor is polarized, so it must be installed correctly:

+ terminal → positive voltage
− terminal → negative/ground

The negative terminal is normally marked with a stripe on the capacitor body.

Voltage Rating

The 35V rating is its maximum specified working voltage. The applied voltage should remain below this rating, including consideration of possible voltage spikes.

For example, it can commonly be used on 12V and 24V DC systems, provided the actual voltage and transients remain within the capacitor's specifications.

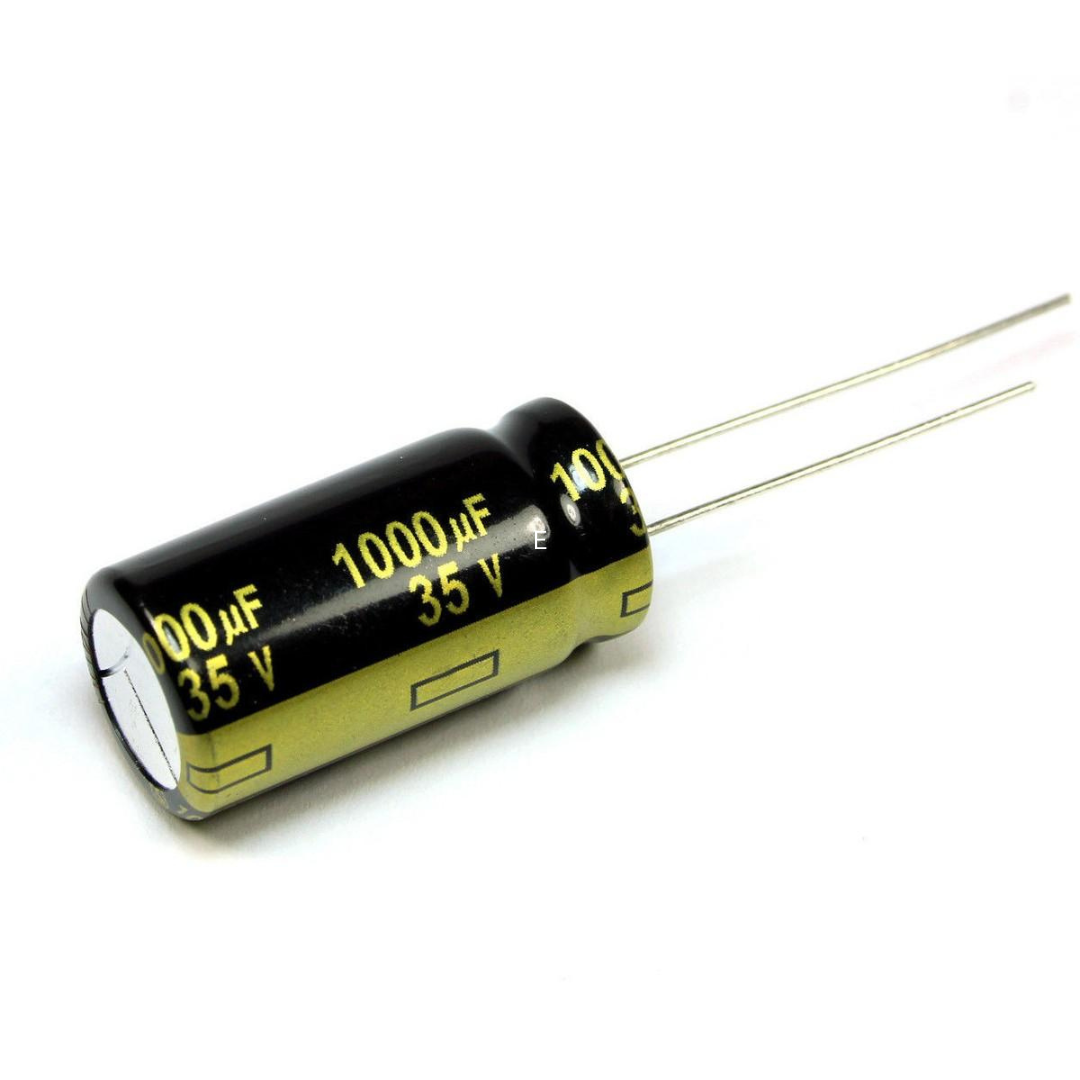

35V 1000µF Electrolytic Capacitor
